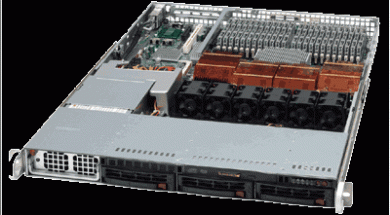

SUPERSERVER SYS-8015C-TB

Processor/Cache

CPU

·            Quad 604-pin FC-mPGA4 Sockets

·            Supports up to four Intel® 64-bit Xeon® MP processor(s) of the same type below:

·            Quad-Core Intel® Xeon®
Processor 7300 sequence

·            Dual-Core Intel® Xeon®
Processor 7200 sequence

System Bus

·            1066 MHz system bus

Operating System Software

·            Supports 64-bit Operating Systems

·            Supports 32-bit Operating Systems

System Memory

Memory Capacity

·            Twenty-four 240-pin DIMM sockets

·            Supports up to 192 GB 667 / 533MHz DDR2 ECC FB-DIMM memory

·            Quad branch memory bus

·            Memory must be populated in pairs

·            Memory Mirroring supported

Memory Type

·            667 / 533MHz FB-DIMM (Fully Buffered DIMM) DDR2 ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

·            1GB, 2GB, 4GB, 8GB

Memory Voltage

·            1.8V only

·            1.5V(AMB)

Error Detection

·            Corrects single-bit errors

·            Detects double-bit errors (using ECC memory)

·            Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices

Chipset

·               Intel® 7300 (Clarksboro) chipset

·               ESB2

SATA

·               Intel ESB2 SATAII Controller

·               RAID 0, 1, 5, 10 support (Windows)

·               RAID 0, 1, 10 support (Linux)

IPMI

·               Support for Intelligent Platform Management Interface v.2.0

·               200-pin IPMI slot (SIMSO)

·               (Optional: AOC-SIMSO(+))

·               For Dedicated LAN, cable CBL-0177L must be used (cable sold separately)

Network Controllers

·               Intel® 82575EB Dual-Port Gigabit Ethernet Controller

·               Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

·               Intel® I/OAT support for fast, scaleable, and reliable networking

Graphics

·               ATI ES1000 controller with 32 MB of video memory

Super I/O

·               Winbond 83627HF chip

Clock Generator

·               CK410B chip
