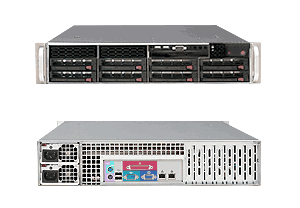

SUPERSERVER SYS-6025W-NTR+B

Processor/Cache

CPU

·            Dual 771-pin LGA Sockets

·            Supports up to Dual Intel® 64-bit Xeon®processor(s) of the same type below:

o  Quad-Core Intel® Xeon®Processor 5400/5300LV sequence (Harpertown/Clovertown processor) up to 3.00 GHz

o  Dual-Core Intel® Xeon®Processor 5200/5100LV sequence (Wolfdale/Woodcrest processor) up to 3.16 GHz

System Bus

·            1600 / 1333 / 1066 MHz system bus

System Memory

Memory Capacity

·            Sixteen 240-pin DIMM sockets

·            Supports up to 128 GB 800 / 667 / 533MHz DDR2 ECC FB-DIMM memory

·            Dual branch memory bus

·            Memory must be populated in pairs

·            Memory Sparing supported

Memory Type

·            800 / 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

·            512 MB, 1GB, 2GB, 4GB , 8GB**

Memory Voltage

·            1.8 V or 1.5 V

Error Detection

·            Corrects single-bit errors

·            Detects double-bit errors (using ECC memory)

·            Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices

Chipset

·               Intel® 5400 (Seaburg) chipset

·               ESB2

SATA

·               Intel ESB2 SATA 3.0Gbps Controller

·               RAID 0, 1, 5, 10 support (Windows only)

IPMI

·               Support for Intelligent Platform Management Interface v.2.0 / 1.5

·               200-pin IPMI slot (SIMSO(+))

·               (Optional: AOC-SIMSO(+))

·               For Dedicated LAN, cable CBL-0177L must be used (cable sold separately)

Network Controllers

·               Intel® 82575 Dual-Port Gigabit Ethernet Controller

·               Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

·               Intel® I/OAT support for fast, scaleable, and reliable networking

Graphics

·               ATI ES1000 controller with 32 MB of video memory

Super I/O

·               Winbond 83627HG chip
