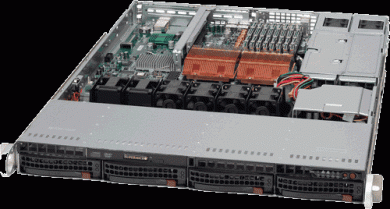

SUPERSERVER SYS-6016T-NTRF

Motherboard

Super X8DTU-F

Processor/Cache

CPU

·            Dual 1366-pin LGA Sockets

·            Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:

o  Quad-Core Intel®
Xeon®Processor 5500 sequence (Nehalem-EP processor)

QPI

·            up to 6.4 GT/s

System Memory

Memory Capacity

·            Twelve 240-pin DIMM sockets

·            Supports up to 96 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory

·            Memory Mirroring supported

Memory Type

·            1333 / 1066 / 800MHz Registered ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

·            1GB, 2GB, 4GB, 8GB

Memory Voltage

·            1.5 V

Error Detection

·            Corrects single-bit errors

·            Detects double-bit errors (using ECC memory)

·            Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices

Chipset

·               Intel® 5520 (Tylersburg) chipset

·               ICH10R + IOH-36D

SATA

·               Intel ICH10R SATA 3.0Gbps Controller

·               RAID 0, 1, 5, 10 support

IPMI

·               Support for Intelligent Platform Management Interface v.2.0

·               IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

·               Winbond® WPCM450 BMC

Network Controllers

·               Intel® 82576 Dual-Port Gigabit Ethernet Controller

·               Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

·               Intel® I/OAT 3 support for fast, scaleable, and reliable networking

·               VMDq support for better performance of virtualization

·               1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

·               Matrox G200eW 8 MB DDR2

Super I/O

·               Winbond 83827HF chip

Chassis

Form Factor

·            1U Rackmount

Model

·            SC815TQ-R650UB

Expansion Slots

PCI-Express

·            2 (x8) PCI-E 2.0 slots

Drive Bays

Hot-swap

·            4x 3.5"SATA Hot-swap drive trays

Peripheral Drives

DVD-ROM

·            Slim 8x DVD, 24x CD, DVD-ROM drive

System Cooling

Fans

·            4x Cooling Fans

Shroud

·            1x Air Shroud

Power Supply

650W (1 + 1) Redundant AC power supply w/ PFC
