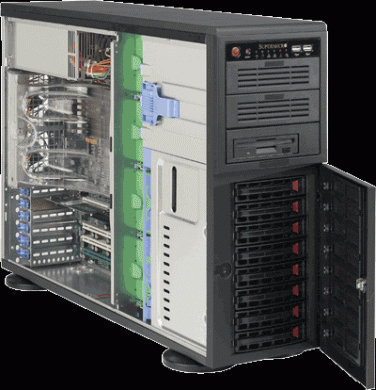

SUPERSERVER SYS-5046A-XB

Motherboard

Super C7X58

Processor/Cache

CPU

·            LGA 1366 Socket

·            Intel® Core™ i7-965 processor Extreme Edition (3.2 GHz)

·            Intel® Core™ i7-940 processor (2.93 GHz)

·            Intel® Core™ i7-920 processor (2.66 GHz)

·            Supports future Intel® Nehalem processor families

System Bus

·            QPI (up to 6.4 GT/s)

System Memory

Memory Capacity

·            Supports up to 24 GB 1600 / 1333 / 1066 / 800MHz DDR3 ECC / non-ECC Un-Buffered memory

·            Three Channel memory bus

·            6 DIMM sockets

Memory Type

·            1600 / 1333 / 1066 / 800MHz Un- Buffered ECC / non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

·            256MB, 512MB, 1GB, 2GB, 4GB

Memory Voltage

·            1.5 V

Error Detection

·            Corrects single-bit errors

·            Detects double-bit errors (using ECC memory)

·            Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices

Chipset

·               Intel® X58 Express chipset

·               ICH10R

SATA

·               Intel ICH10R SATA 3.0Gbps Controller

·               RAID 0, 1, 5, 10 support

Network Controllers

·               Dual Intel® 82574L Gigabit Ethernet Controller

·               Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Audio

·               Realtek ALC883 7.1 HD audio

Super I/O

·               Winbond 83627DHG chip

Clock Generator

·               CK505
