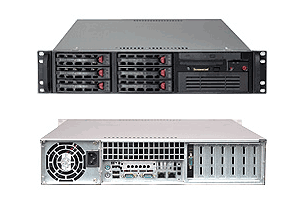

SUPERSERVER SYS-5025B-TB

Processor/Cache

CPU

·            Single LGA775 ZIF Socket

·            Supports a Quad-Core Intel® Xeon® 3200 Series processor

·            Supports a Dual-Core Intel® Xeon® 3000 Series processor

System Bus

·            1333 / 1066 / 800 MHz system bus

System Memory

Memory Capacity

·            Four 240-pin DIMM sockets

·            Supports up to 8 GB of memory (Dual Channel)

Memory Type

·            DDR2 800/667MHz unbuffered, ECC SDRAM, 240-pin gold-plated DIMMs

DIMM Sizes

·            256 MB, 512 MB, 1 GB, 2GB

Memory Voltage

·            1.8V only

On-Board Devices

Chipset

·            Intel 3210 chipset

·            ICH9R + PXH + Intel® 82573V + Intel® 82573L

Serial ATA

·            Intel® ICH9R SATA controller built-in (3 Gbps)

IPMI

·            Support for Intelligent Platform Management Interface v.2.0

·            IPMI 2.0 with virtual media over LAN & optional KVM-over-LAN support

·            SIMSO Slot - Supermicro Intelligement Management

·            (Optional: AOC-SIM1U)

·            NOTE: Must use Dedicated LAN for KVM-over-LAN function

Network Controllers

·            2x Single-port Gigabit PCI-Express Ethernet Controllers

·            Intel® 82573V + Intel® 82573L

·            Supports 10BASE-T, 100BASE-T, 1000BASE-T, RJ45 output

VGA

·            On-board ATI ES1000 (32MB) graphics

Super I/O

·            Winbond 83627DHG chip

Clock Generator

·            CK505
