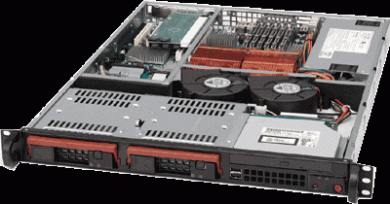

SUPERSERVER SYS-5016T-TB

Processor/Cache

CPU

·            LGA 1366 Socket

·            Intel® Core™ i7-965 processor Extreme Edition (3.2 GHz)

·            Intel® Core™ i7-940 processor (2.93 GHz)

·            Intel® Core™ i7-920 processor (2.66 GHz)

·            Supports future Intel® Nehalem processor families

System Bus

·            QPI (up to 6.4 GT/s)

System Memory

Memory Capacity

·         Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC / non-ECC Un-Buffered memory

·         Three Channel memory bus

·         6 DIMM sockets

Memory Type

·         1333 / 1066 / 800MHz Un- Buffered ECC / non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

·         256MB, 512MB, 1GB, 2GB, 4GB

Memory Voltage

·         1.5 V

Error Detection

·            Corrects single-bit errors

·            Detects double-bit errors (using ECC memory)

·            Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices

Chipset

·            Intel® X58 Express chipset

·            ICH10R

SATA

·            Intel ICH10R SATA (3.0Gbps) Controller

·            RAID 0, 1, 5, 10 support

Network Controllers

·            2x Intel® Gigabit Ethernet Controllers

·            Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

VGA

·            Integrated Graphics

Super I/O

·            Winbond 83627DHG chip

Clock Generator

·            CK505
