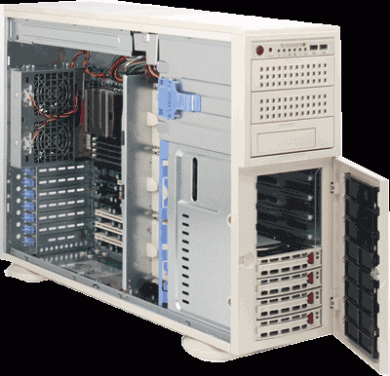

SUPERSERVER AS-4021M-32RB

Motherboard

Super H8DM3-2

Processor/Chipset

CPU

Dual 1207-pin Socket F

            Supports up to two AMD Opteron™ 2000 Series (Socket F) processor(s)

Dual-core Support

System Bus

1000MHz HyperTransport

Chipset

nVidia MCP55 Pro

AMD 8132

System Memory

Memory Capacity

   Eight 240-pin DIMM sockets

   Supports up to 32 GB DDR2 667 MHz memory

   Supports up to 32 GB DDR2 533 MHz memory

   Supports up to 32 GB DDR2 400 MHz memory

   For Single CPU: Memory must be populated in CPU1 DIMMs only

   For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks

   Dual channel memory bus

Memory Type

   DDR2 667/533/400 MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

   256 MB, 512 MB, 1GB, 2GB, 4GB

Memory Voltage

   1.8 V only

On-Board Devices

SAS

   8-Port LSI 1068E SAS Controller

   SAS RAID 0, 1, 10, JBOD Support

SATA

   nVidia MCP55 Pro SATA2 3.0Gbps Controller

   6 SATA2 Ports

   nVidia RAID 2.0

   SATA RAID 0, 1, 0+1, 5 JBOD Support

IPMI

   Intelligent Platform Management Interface v.2.0, Low Profile (Optional: AOC-SIMLP)

   RMM (Remote Management Module)

   (Card not included)

Network Controllers

   nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller

   Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

VGA

   ATI ES1000 Graphics Controller

Super I/O

   Winbond 83627HF

Chassis

Form Factor

   Tower / 4U Rackmountable

   Optional Rackmount Kit (CSE-PT26)

Model

   SC745TQ-R800

Drive Bays

Hot-swap

   8x 3.5 " Hot-swap Drive Bays

Peripheral Bay(s)

   3x 5.25" Peripheral Drive Bays

Expansion Slots

PCI-Express

   2 x8 PCI-e slots

   1 x4 PCI-e (in a x8 physical slot)

   1 SEPC (Supermicro extended Power Connector) slot for 2U active riser cards with a power extension (i.e. CSE-RR2UE-AX)

PCI-X

   1 64-bit 133MHz PCI-X (3.3V) slots

   2 64-bit 133/100MHz PCI-X (3.3V) slots

IPMI

   IPMI 2.0 expansion slot

System Cooling

Fans

   3x 5000 RPM Hot-Swappable Cooling Fans

   2x 5000 RPM Hot-Swappable Rear Exhaust Fan

Shrouds

   1x Air Shroud
