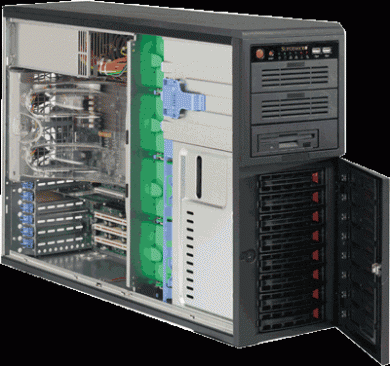

SUPERSERVER AS-4021A-T2B

Motherboard

Super H8DAE-2

Processor/Chipset

CPU

·            Dual 1207-pin Socket F

·            Supports up to two Dual-Core AMD Opteron™ 2000 Series (Socket F) processor(s)

System Bus

·            1000MHz HyperTransport

Chipset

·            nVidia MCP55 Pro

·            nVidia IO-55

·            NEC uPD720400

System Memory

Memory Capacity

·            Eight 240-pin DIMM sockets

·            Supports up to 16 GB DDR2 667 MHz memory or

·            Supports up to 16 GB DDR2 533 MHz memory or

·            Supports up to 32 GB DDR2 400 MHz memory or

·            Single or Dual (recommended) channel memory support

·            For Single CPU: Memory must be populated in CPU1 DIMMs only

·            For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks

Memory Type

·            DDR2 667/533/400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

·            256MB, 512MB, 1GB, 2GB, 4GB

Memory Voltage

·            1.8V only

Error Detection

·            Corrects single-bit errors

·            Detects double-bit errors (using ECC memory)

On-Board Devices

SATA

·            nVidia MCP55 Pro SATA2 3.0Gbps Controller

·            6 SATA Ports

·            nVidia RAID 2.0

·            SATA RAID 0, 1, 0+1, 5, JBOD Support

IPMI

·            Intelligent Platform Management Interface v.2.0, Low Profile

·            RMM (Remote Management Module)

·            (Optional: AOC-SIMLP-B(+))

·            (Optional: AOC-SIMLP-3(+)) with 3rd LAN support

·            (Card not included)

Network Controllers

·            nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller

·            Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Super I/O

·            Winbond 83627HF

Audio

·            HD Audio 7.1 Sound

Expansion Slots

PCI-Express

·            2 x16 PCI-e Slots

·            1 x8 PCI-e Slot

·            1 x4 PCI-e Slot

PCI-X

·            1 64-bit 133MHz PCI-X (3.3V) slots

·            1 64-bit 100MHz PCI-X (3.3V) slot

Chassis

Form Factor

·            Tower / 4U Rackmountable

·            Optional Rackmount Kit (CSE-PT26)

Model

·            SC743TQ-645

Drive Bays

Hot-swap

·            8 x 3.5" SATA Hot-swap Drive Bays

·            Up to 6x SATA Hard Drives Supported

Peripheral Bay(s) [90^o Rotatable]

·            2x 5.25" Peripheral Drive Bay

·            1x 5.25" Bay For Floppy Drive

System Cooling

Fans

·            4x 5000 RPM Hot-swappable PWM Cooling Fans

·            1x Exhaust Fan
