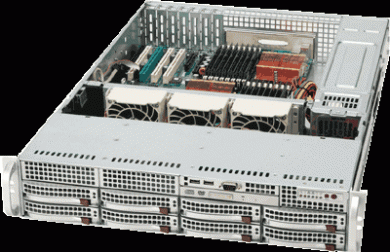

SUPERSERVER AS-2021M-UR+B

Motherboard

Super H8DMU+

Processor/Chipset

CPU

·            Dual 1207-pin Socket F

·            Supports up to two AMD Opteron™ 2000 Series (Socket F) processor(s)

·            Dual-core / Support

System Bus

·            1000MHz HyperTransport

System Memory

Memory Capacity

·            Sixteen 240-pin DIMM sockets

·            Supports up to 64 GB DDR2 667/533/400 MHz memory

·            For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks

·            Dual channel memory bus

Memory Type

·            DDR2 667/533/400 MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

·            256 MB, 512 MB, 1GB, 2GB, 4GB

Memory Voltage

·            1.8 V only

On-Board Devices

Chipset

·            nVIDIA MCP55Pro

SATA

·            nVidia MCP55 Pro SATA2 3.0Gbps Controller

·            6 SATA Ports

·            nVidia Host RAID 2.0

·            SATA RAID 0, 1, 0+1, 5, JBOD Support

IPMI

·            Support for Intelligent Platform Management Interface v.2.0

·            200-pin IPMI slot (SIMSO)

·            (Optional: AOC-SIMSO(+))

·            RMM (Remote Management Module)

·            (Card not included)

·            For dedicated LAN, CBL-0177L must be used (Cable not included)

Network Controllers

·            nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller

·            Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

VGA

·            ATI ES1000 Graphics Controller

Super I/O

·            Winbond 83627HF

Chassis

Form Factor

·            2U Rackmount

Model

·            SC825TQ-R700UV

Expansion Slots

PCI-Express

1 Universal I/O (UIO) Slots

3 (x8) PCI-E Full-height / Full-length Slots

1 (x8) PCI-E Low-profile Slot

1 (x4) PCI-E Low-profile Slot

IPMI

IPMI 2.0 expansion slot

Drive Bays

Hot-swap

8 x 3.5" SATA Hot-swap drive trays

Peripheral Drives

DVD-ROM

Slim 8x DVD, 24x CD,

Floppy

Slim 1.44MB Floppy Drive (Optional)

SAS / SATA Backplane

1x 2U SAS / SATA backplane with Enclosure Management (SGPIO)

System Cooling

Fans

3x 80mm 6300 RPM fans

Shroud

1x Air Shroud
