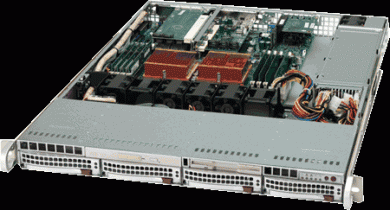

SUPERSERVER AS-1021M-UR+B

Processor/Chipset

CPU

·            Dual 1207-pin Socket F

·            Supports up to two Quad-Core / Dual-Core AMD Opteron™ 2000 Series (Socket F) processor(s)

·            Dual-core Support

·            1 MB Cache

System Bus

·            1000MHz HyperTransport

Chipset

·            nVIDIA MCP55Pro

System Memory

Memory Capacity

·            Sixteen 240-pin DIMM sockets

·            Supports up to 64 GB DDR2 667/533/400 MHz memory

·            For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks

·            Dual channel memory bus

Memory Type

·            DDR2 667/533/400 MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

·            256 MB, 512 MB, 1GB, 2GB, 4GB

Memory Voltage

·            1.8V only

On-Board Devices

SATA

·            nVidia MCP55 Pro SATA2 3.0Gbps Controller

·            6 SATA Ports

·            nVidia Host RAID 2.0

·            SATA RAID 0, 1, 0+1, 5, JBOD Support

IPMI

·            Intelligent Platform Management Interface v.2.0 (Optional: AOC-SIMSO(+)  R 3.00)

·            RMM (Remote Management Module)

·            (Card not included)

·            For dedicated LAN, CBL-0177L must be used (Cable not included)

Network Controllers

·            nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller

·            Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

VGA

·            ATI ES1000 Graphics Controller

Super I/O

·            Winbond 83627HF
