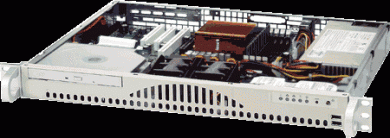

SUPERSERVER AS-1011S-MR2B

Motherboard

Super H8SSL-i2

Processor/Chipset

CPU

¡¤            Single 940-pin ZIF Socket

¡¤            Supports one Dual-Core AMD Opteron¢â 1000 Series (Socket AM2) processor

¡¤            4 phase VRM

System Bus

¡¤            800MHz HyperTransport

Chipset

¡¤            ServerWorks HT1000

System Memory

Memory Capacity

¡¤            Four 240-pin DIMM sockets

¡¤            Supports up to 8 GB DDR2 800/667/533 MHz memory

¡¤            Single or Dual (recommended) channel memory

Memory Type

¡¤            DDR2 800/667/533MHz un-buffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

¡¤            256 MB, 512 MB, 1GB, 2GB

Memory Voltage

¡¤            1.8V only

On-Board Devices

SATA

¡¤            4 SATA Ports using ServerWorks HT1000 controller

IDE

¡¤            Supports UDMA Mode 5

¡¤            Supports PIO Mode 4

¡¤            Supports ATA/100

IPMI

¡¤            1U support: Intelligent Platform Management Interface v.2.0+ (Optional: 1UIPMI)

¡¤            Remote Management Module

¡¤            (Card not included)

Network Controllers

¡¤            Broadcom BCM5704C Dual Gigabit Ethernet Controller

¡¤            Supports 1000BASE-T, RJ45 output

VGA

¡¤            ATI ES1000 Graphics Controller

Super I/O

¡¤            Winbond 83627HF

Expansion Slots

PCI-X

¡¤            1 64-bit 133MHz PCI-X (3.3V) slot

Chassis

Form Factor

¡¤            1U Rackmount

Model

¡¤            SC512F-260

Peripheral Drives

CD-ROM

¡¤            TEAC Slim 24x CD-ROM drive

System Cooling

Fans

¡¤            2x 4cm 3-pin Nidec Counter-rotating Fans
