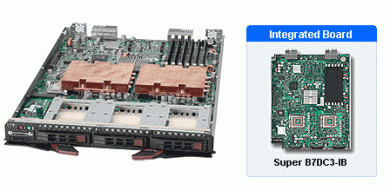

SUPERBLADE MÓDULO SBI-7425C-S3E

Motherboard

Super B7DC3-IB

Processor/Cache

CPU

·            Dual 771-pin LGA Sockets

·            Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:

o  Quad-Core Intel® Xeon®Processor
5400/5300 sequence (Harpertown
/Clovertown processor) up to 3.16 GHz

o  Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale
/Woodcrest/Dempsey processor) up to 3.40 GHz

System Bus

·            1333 / 1066 MHz system bus

Operating System Software

·            Supports 64-bit Operating Systems

·            Supports 32-bit Operating Systems

System Memory

Memory Capacity

·         Six 240-pin DIMM sockets

·         Supports up to 48GB VLP 667/533MHz DDR2 ECC Registered memory

·         Memory must be populated in pairs

Memory Type

·         667/533MHz Registered VLP DDR2 ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

·            512MB, 1GB, 2GB, 4GB, 8GB

Memory Voltage

·            1.8V

Error Detection

·            Corrects single-bit errors

·            Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset

·               Intel® 5100 (San Clemente) chipset

·               Intel® ICH9R

Infiniband Support

·               4x DDR (20Gb/s) Infiniband mezzanine HCA (Optional)

SAS

·               LSI SAS 1068E

·               RAID 0, 1 support

·               Optional RAID 5 support via AOC-iButton68

IPMI

·               Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)

·               (Optional: AOC-SIMBL)

Network Controllers

·               Intel® 82575EB Gigabit ethernet controller

·               Intel® I/OAT support for fast, scaleable, and reliable networking

Super I/O

·               Winbond 83627DHG chip

Clock Generator

·               CK505 chip

Drive Bays

Hot-swap

·            3x 2.5" SAS/SATA Hot-swap drive bays
