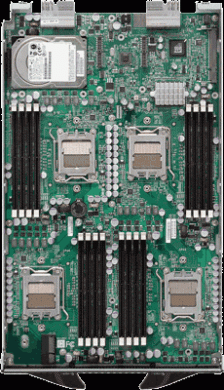

SUPERBLADE MÓDULO SBA-7141M-T

Motherboard

Super BHQME

Processor/Chipset

CPU

·            Quad 1207-pin Socket F

·            Supports up to four Quad-Core / Dual-Core AMD Opteron™ 8000 Series (Socket F) processor(s)

System Bus

·            1000MHz HyperTransport

Chipset

·            nVidia MCP55 Pro

System Memory

Memory Capacity

·            Sixteen 240-pin DIMM sockets

·            Supports up to 64 GB DDR2 667 MHz memory

·            Supports up to 32 GB DDR2 533 MHz memory

·            Supports up to 64 GB DDR2 400 MHz memory

·            Single or Dual (recommended) channel memory support

·            For Quad CPUs: Recommended that memory be populated equally in adjacent memory banks

Memory Type

·            DDR2 667/533/400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

·            256MB, 512MB, 1GB, 2GB, 4GB

Memory Voltage

·            1.8V only

Error Detection

·            Corrects single-bit errors

·            Detects double-bit errors (using ECC memory)

On-Board Devices

SATA

·            nVidia MCP55 Pro SATA2 3.0Gbps Controller

·            6 SATA2 Ports

·            nVidia RAID 2.0

·            SATA RAID 0, 1, 0+1, 5, JBOD Support

IPMI

·            Support for Intelligent Platform Management Interface v.2.0 via Chassis Management Module (CMM)

Network Controllers

·            Intel® (ESB2) 82563EB Dual-Port Gigabit Ethernet PHY Controller

·            Supports SerDes (Serializer/Deserializer)

·            Intel® I/OAT support for fast, scaleable, and reliable networking

Super I/O

·            Winbond 83627HF

VGA

·            ATI ES1000 Graphics Controller

Hard Drive Support

Internal

·            1x 2.5" Fixed SATA/SAS Hard Drive Support
